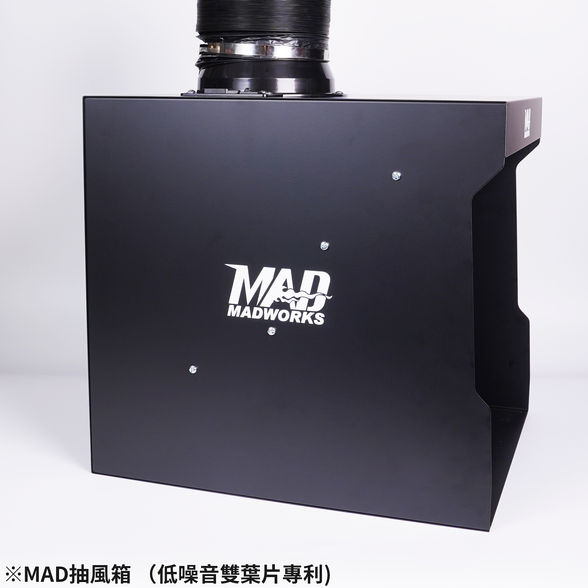

MADWORKS Luftstrom MADWORKS抽風箱

Model No.: DB-01 (型號: DB-01)

Duct: 6" Flex Duct (6吋風管)

Dimensions 尺寸

• Top Air Outlet Height: 7.0cm

• Main Unit Height: 41.5cm

• Width: 44.0cm

• Depth: 38.5cm

Product Specifications 產品規格

• Rated Voltage 額定電壓: A.C. 100-240 V, 50/60Hz

• Power Rating 額定功率: 20.5W

• Noise Level 噪音值: 55–58 dB (**measured at close range 近距離測量)

• Airflow 氣流吸力: 330 m³/h

Product Description 產品描述

This product is designed as a spray booth for scale modeling, used to extract paint mist and odors during spraying.

本產品為模型噴塗用抽風箱，設計用於抽取噴塗時產生的漆霧與氣味。

Included in the Package 零件清單

• Metal Housing 鐵箱

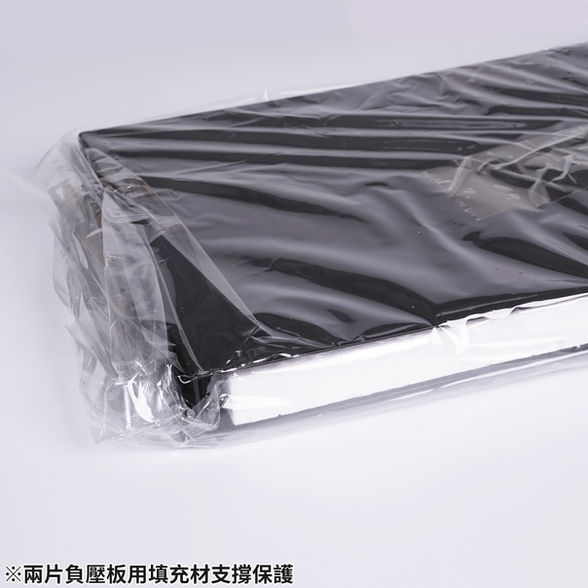

• Baffle Plate 負壓板

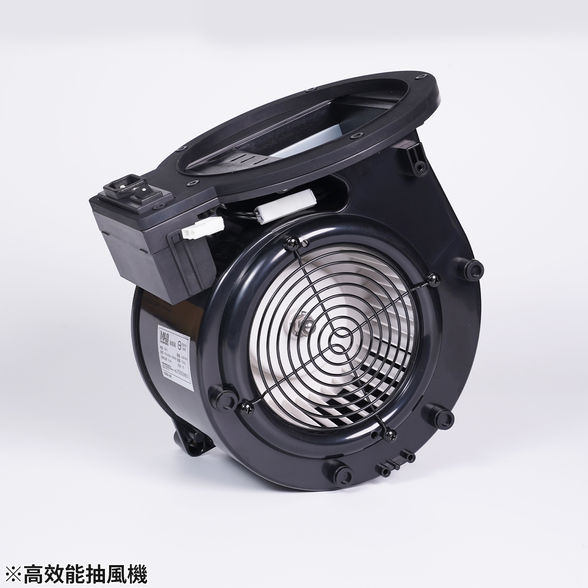

• Exhaust Fan 風機

• Exhaust Vent Cover 風口上蓋

• EPDM Fan Gasket 防震墊片

• Power Cord (US Standard) 電源線 (美規)

• NT51-5 LED Strip Assembly LED燈組及電源線

• Foam Strip 泡棉條

• 6" Flex Duct 6吋風管 1

• Stainless Steel Hose Clamp 風管束套 1

• Peelable Dust Absorber 集塵墊

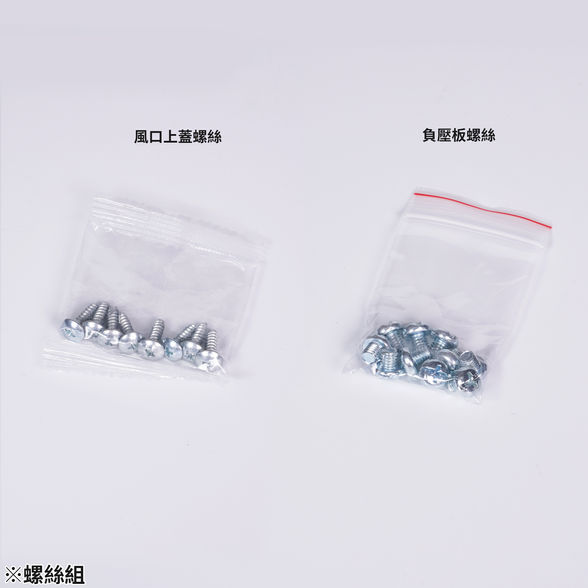

• Screws 螺絲

** See manual for details 請參閱用戶指南

Please check all parts promptly upon receiving the product. If any parts are missing, please apply for replacement within 7 days of purchase.

收到產品後請盡速核對，如有缺件請於購入後7天內申請補件。
